SCM-6 Series

Login to view prices

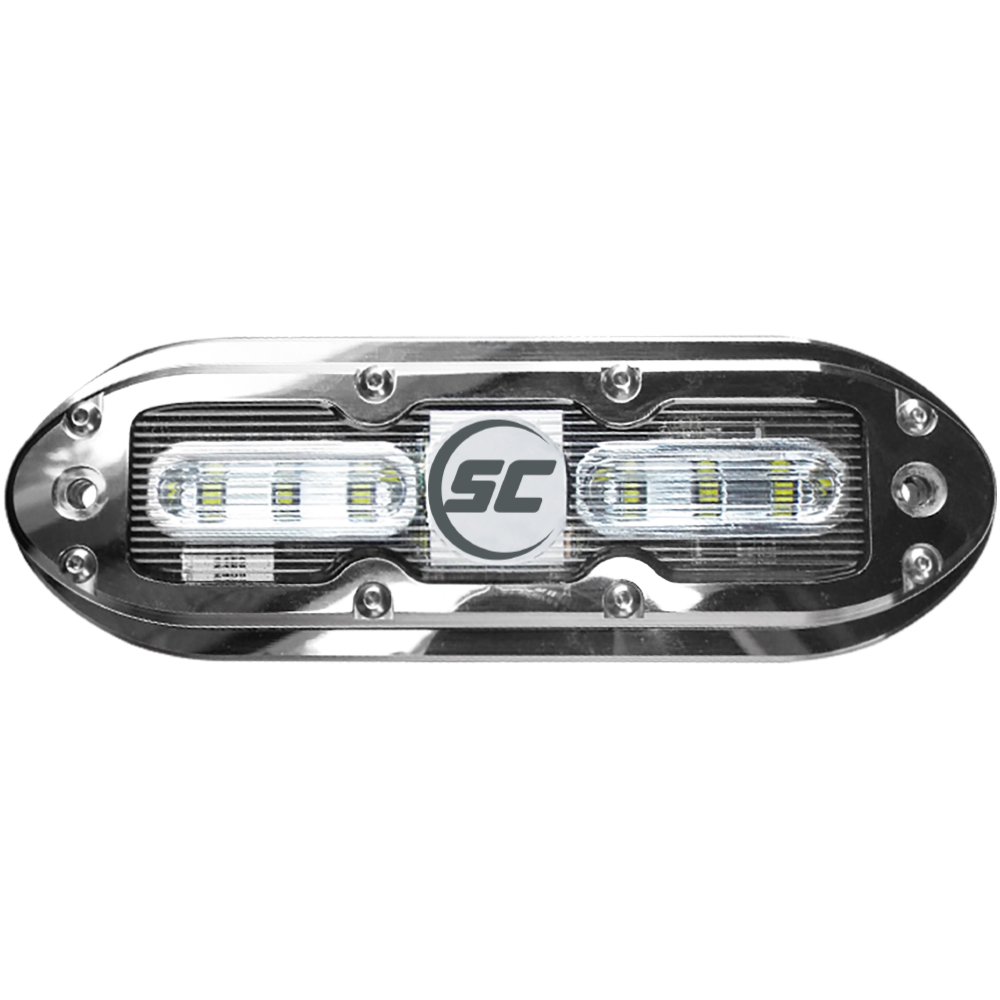

The SCM-6 underwater light provides your vessel 24 watts of intense LED lighting. The SCM-6’s low profile design allows for many mounting locations. 5 different single color options to chose from. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

UPC: N/A Categories: , ,

Technical Information

  • Up to 2,400 lumens (White)
  • 120° beam angle
  • 24 watts power draw
  • 2.0 amps operating current draw @ 12 volts
  • 10-30 volts input

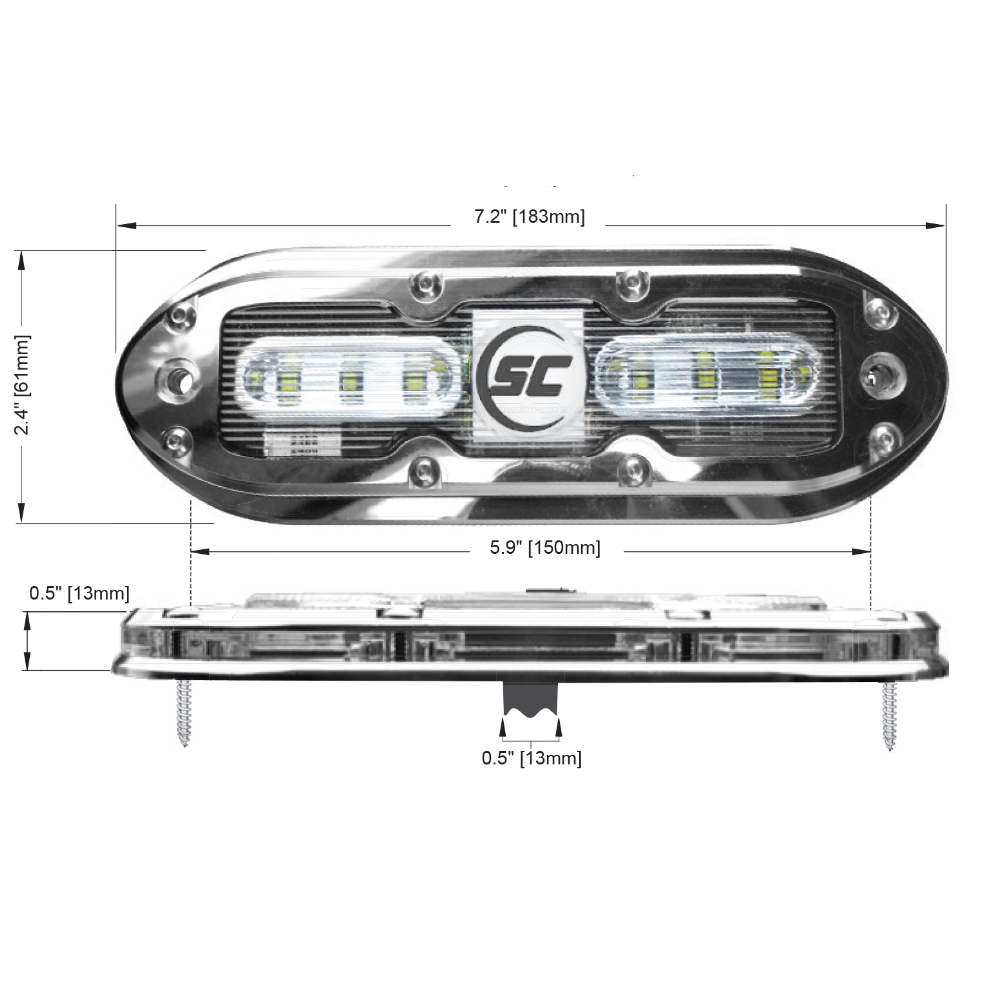

  • 7.2″ (183mm) x 2.4″(61mm) x 0.5″ (13mm)
  • IP68 fully submersible waterproof design
  • 6 single color LEDs

Product Description

  • Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
  • Tough, polycarbonate lens
  • Passivated stainless steel 316 material provides a durable corrosion resistant housing
  • Transient surge and reverse polarity protection — dramatically prolongs unit life
  • Thermal throttling technology — enables safe operation even out of water

Additional Information

Weight 2.25 lbs
Dimensions 14 × 5 × 5 in
Color

Aqua Green, Bimini Blue, Cool Red, Great White, Ultra Blue

SCM-6 Datasheet.pdf

SCM-6 Installation Diagram.pdf

Includes

• Lighting unit
• 20′ (6m) submersible-grade cable
• 2 SS316 1″ #8 PH Screws
• Standard 2 year warranty
