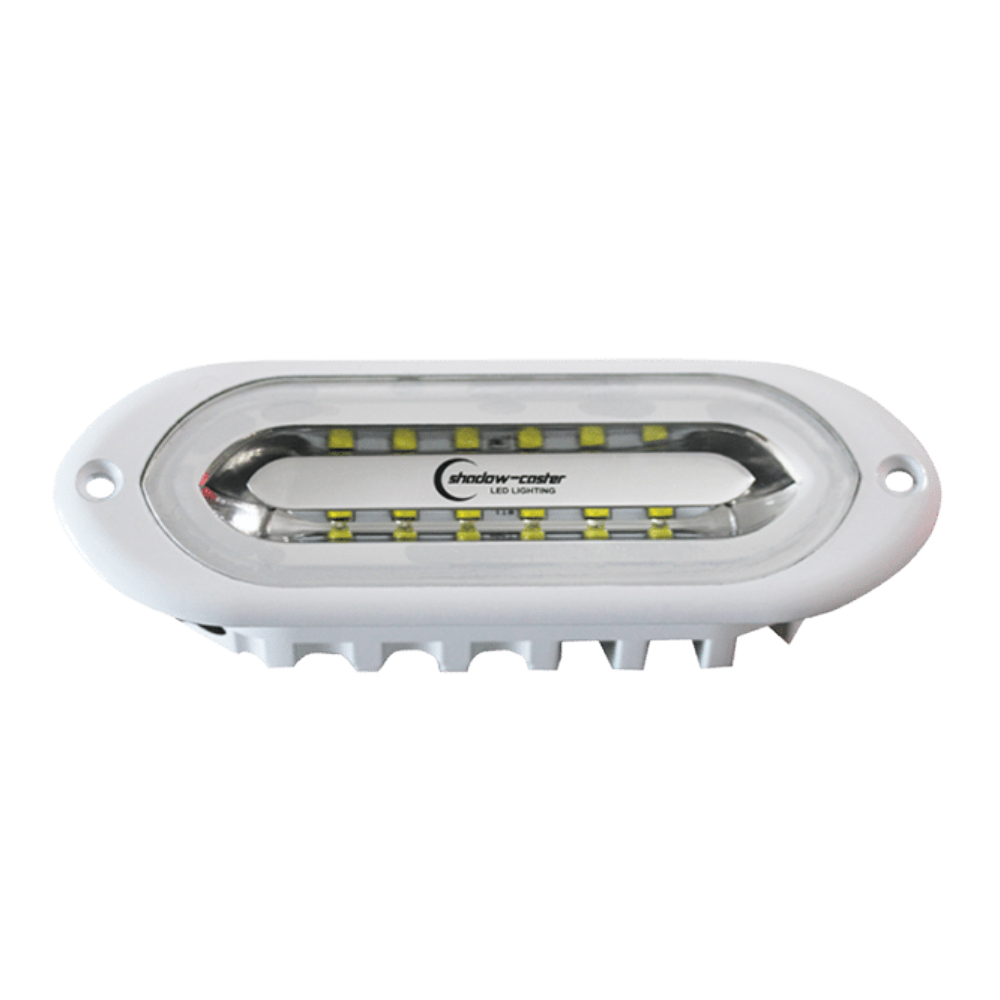

SCM-SL Marine LED Spreader Light
SCM-SL Marine LED Spreader Light - Image 2

SCM-SL Marine LED Spreader Light

Login to view prices

The Shadow-Caster® Spreader Light is perfect for illuminating decks and other large areas of your boat or yacht. The flush mount version is great for mounting in T-Tops or use the bracket mount version to retrofit existing installations. The Shadow- Caster® Spreader Light has a unique reflector design which spreads the light beams out to reduce glare.



Clear selection
UPC: N/A Categories: , Tag:

Technical Information

  • Up to 1,500 lumens (White)
  • 60° beam angle
  • 16 watts power draw
  • 10-30 volts input
  • 1.4A @ 12 volts, 0.7A @ 24 volts
  • 6200 Kelvin cool white color temperature

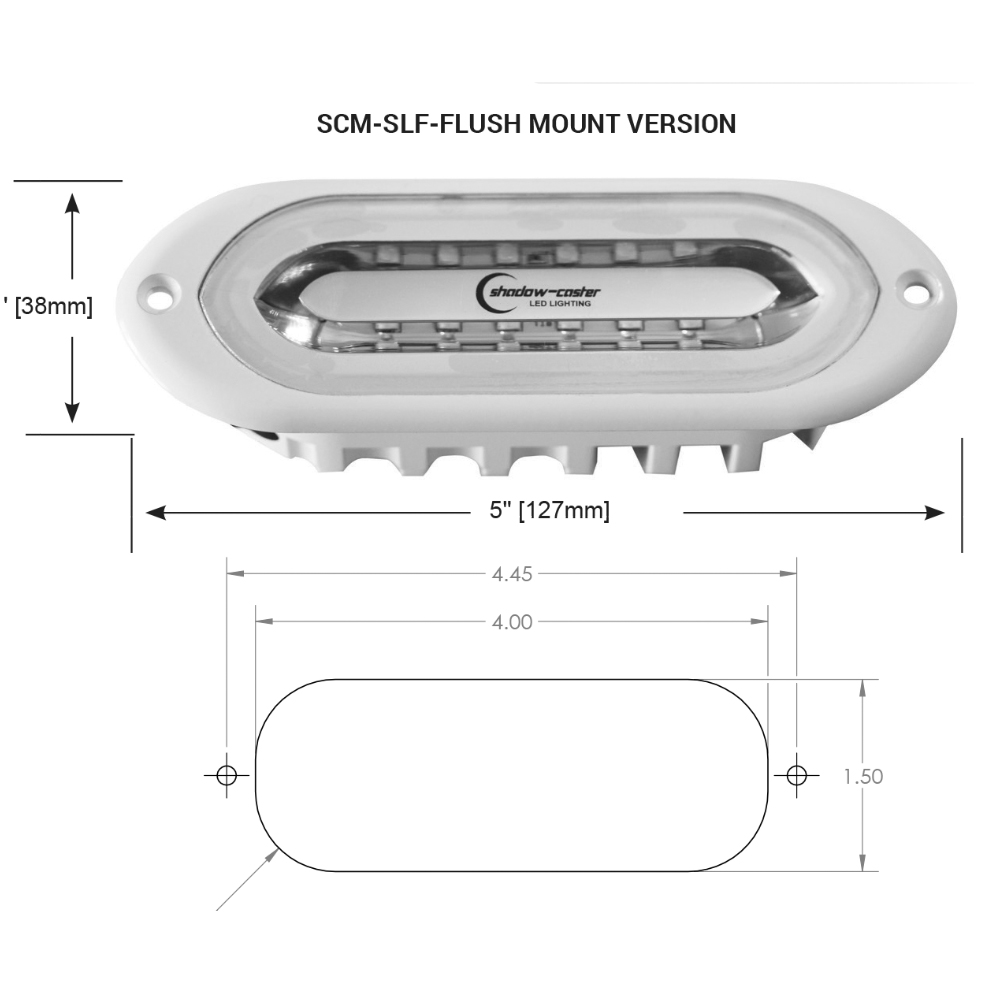

  • 5″ (127mm)Width x 1.5″(38mm)Height x 1.3″ (33mm)Mounting Depth
  • IP67 waterproof design
  • Durable glass lens
  • Full color version includes Shadow-NET interface for controlling color

Product Description

  • Soft start technology ramps the brightness up gently over 2 seconds.
  • Power toggle feature to set brightness and change color
  • True white LED for best color performance
  • High efficiency switch mode power supply
  • Waterproof low-profile aluminum housing
  • White or black finish
  • Unique reflector design to reduce glare

Control Options

Power Toggle Control

Toggle power source to advance to the next color or brightness level

Power Toggle Control

Quickly toggle power source to advance to the next color or brightness level

Shadow-NET Control

Full-feature control with your MFD

Shadow-NET Control

Dramatic, full-feature control through your multifunction Display (MFD) by adding the Shadow-NET control Module

Shadow-NET Modes

  • Unlimited shades of color and fading
  • Dimming
  • Music sync
  • Strobe rate
  • Multiple zones

Dramatically enhance lighting capabilities through your existing MFD

Additional Information

Weight .65 lbs
Dimensions 3 × 7 × 3 in
Housing Color

Black, White
Mounting Options

Flush Mount, Bracket Mount
Color

, ,

SCM-SL Datasheet.pdf

Includes

• Spreader light
• Mounting screws and (2 screws) #4 X 0.5” SS3160H
screws with flush mount version
• Quick start guide
• Standard 2 year warranty
