SCR-24 Series

Login to view prices

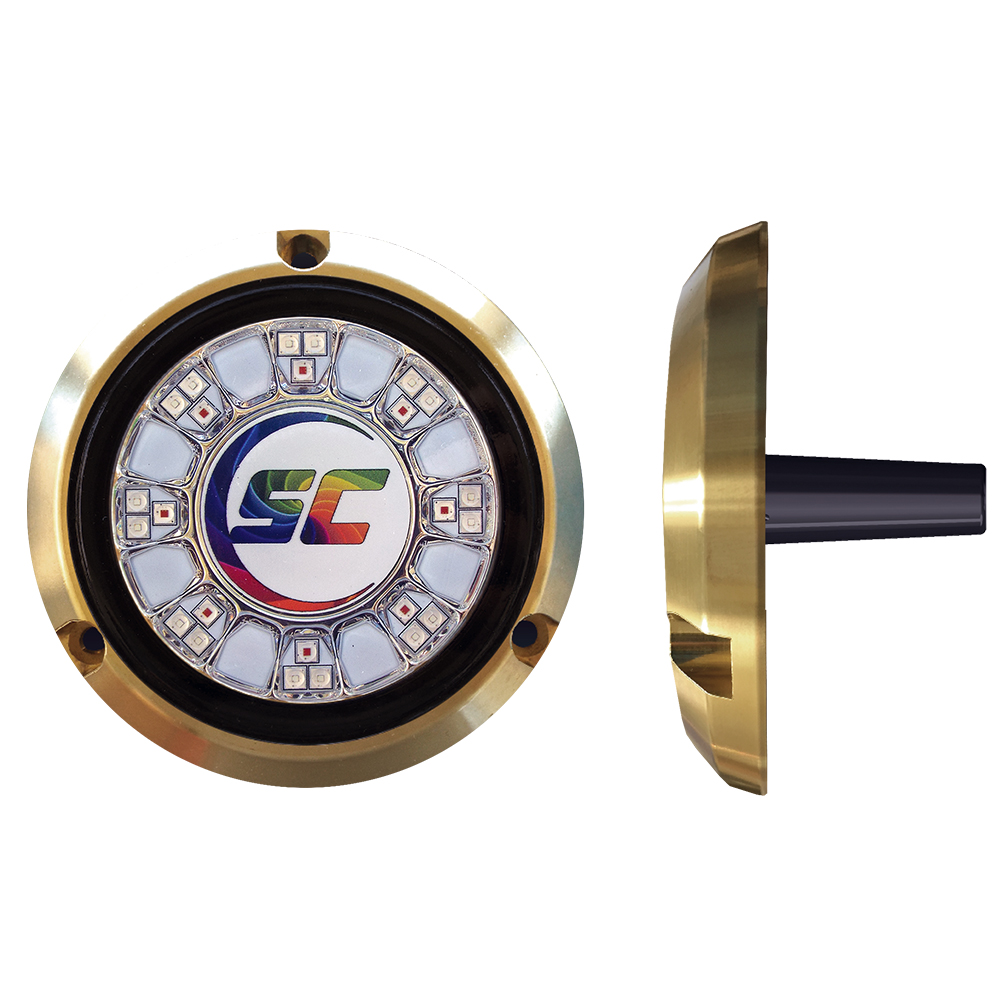

The SCR-24 is a 24 LED round underwater marine light and provides your vessel with 90 watts of intense LED lighting. The SCR-24’s are designed within a compact 4″ diameter bronze housing for under waterline surface mounting. Single or multi-color versions available with variable brightness and a wide array of control options.

UPC: N/A Categories: , , Tags: ,

Technical Information

  • Up to 10,000 lumens (White)
  • 120° beam angle
  • 90 watts power draw
  • 7.8 amps operating current draw @ 12 volts
  • 10-40 volts input

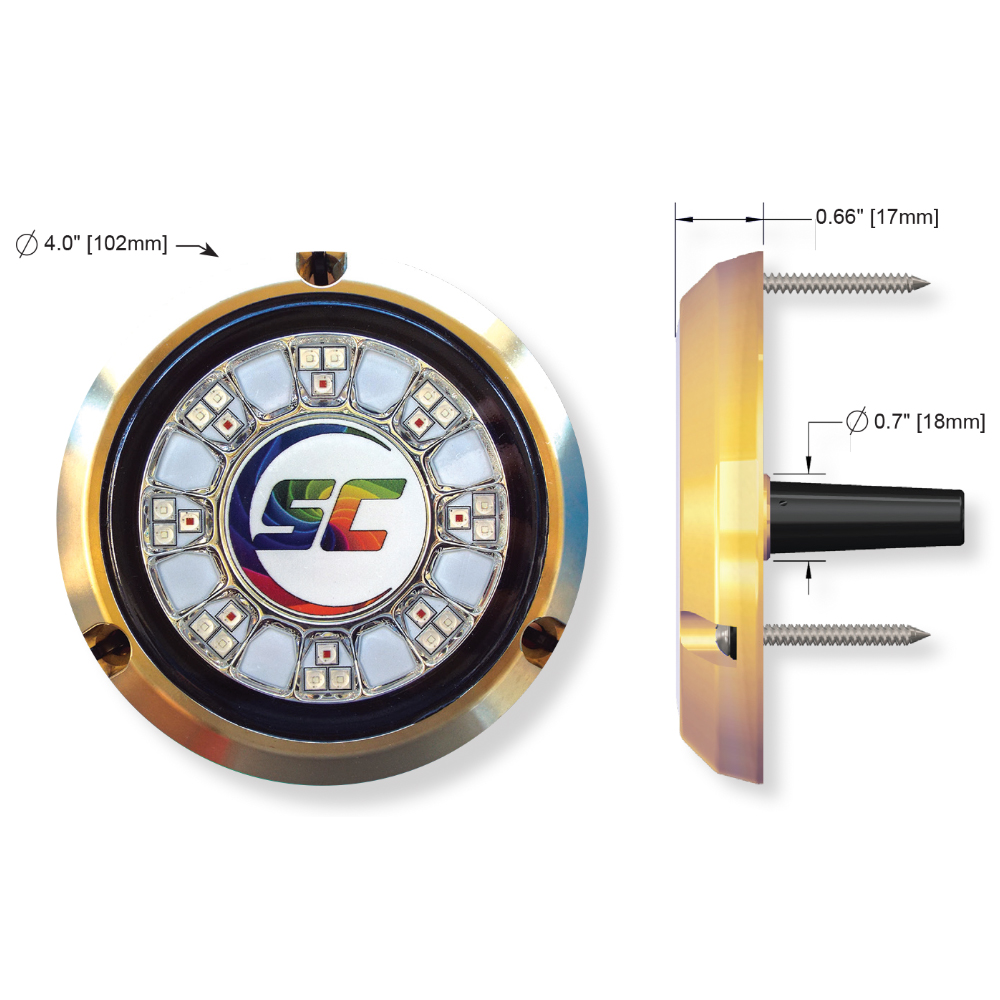

  • 4″ (102 mm) OD
  • IP68 fully submersible waterproof design

Product Description

  • Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
  • Tough, scratch resistant, tempered glass lens with bronze housing — impervious to acetone, solvents and demanding marine environments
  • Transient surge and reverse polarity protection — dramatically prolongs unit life
  • Thermal throttling technology — enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • Full color light “CC’ has 12 built-in colors, and can be enabled with unlimited colors and many other advanced features using Shadow-NET®
  • 2-Year Warranty

Control Options

Power Toggle Control

Toggle power source to advance to the next color or brightness level

Power Toggle Control

Quickly toggle power source to advance to the next color or brightness level

Push Button Control

Connect to any push button controller

Push Button Control

Push Button Modes

Single-Color Lights

  • Light On
  • Fade in/fade out
  • Strobe

2-Color Lights

  • Either single color on
  • Fade between colors
  • Strobe current Color

Full Color Lights

  • Any single color on
  • Fade blue to white
  • Fade through all 12 colors
  • Strobe current Color

Shadow-NET Control

Full-feature control with your MFD

Shadow-NET Control

Dramatic, full-feature control through your multifunction Display (MFD) by adding the Shadow-NET control Module

Shadow-NET Modes

  • Unlimited shades of color and fading
  • Dimming
  • Music sync
  • Strobe rate
  • Multiple zones

Dramatically enhance lighting capabilities through your existing MFD

Additional Information

Weight 2.4 lbs
Dimensions 6 × 6 × 6 in
Color

, , , ,

Lumens

Current Draw

7.8 amps

Watts

90

LEDs

24

SCR-24 Datasheet.pdf

SCR Series Installation Diagram.pdf

SCR Series Installation Instructions.pdf

SCR-24 on a Toggle Switch Wiring Diagram.pdf

SCR-24 on a Toggle Switch with Push Button Wiring Diagram.pdf

Four SCR-24s on a PD-RELAY-4 Wiring Diagram.pdf

Includes

• Lighting unit
• 10′ (3 m) submersible-grade cable
• 3 Silicon bronze screws:
#8 x 1½” L, square drive, FH
• Standard 2 year warranty
