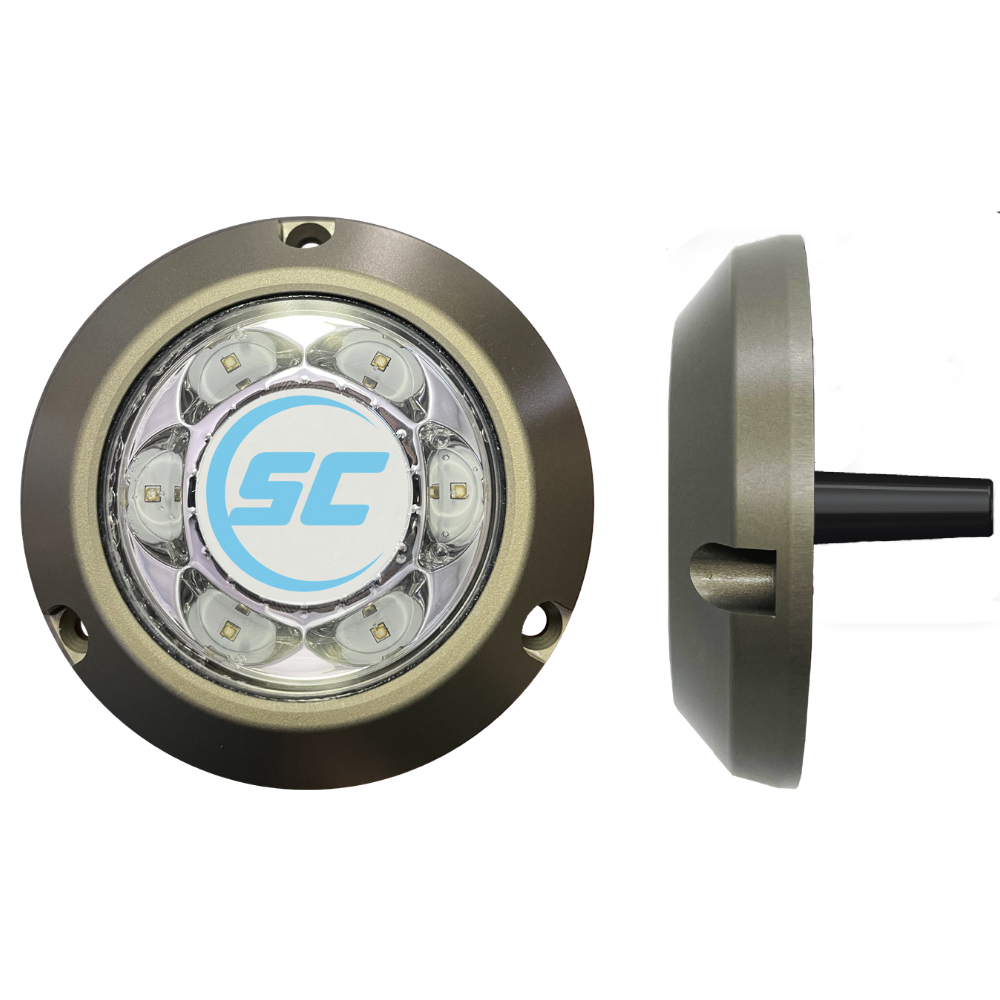

SC3 3″ Round Underwater Marine Light

Login to view prices

The SC3 underwater light provides your vessel 24 watts of intense LED lighting. The SC3’s are designed with a sub-compact 3” diameter hard anodized aluminum housing for under the waterline surface mounting. Single color or color changing versions available with variable brightness and a wide array of control options.

UPC: N/A Categories: , ,

Technical Information

  • Up to 3,000 lumens
  • 120 degree beam angle
  • 24 watts power draw
  • 2 amps operating current draw @ 12 volts
  • 10-30 volts input
  • 3.6” (91.44 mm) OD
  • IP68 fully submersible waterproof design

Product Description

The SC3 Series 3″ round underwater marine light provide your vessel with 24 watts of intense LED lighting. The SC3’s are designed with a sub-compact 3” diameter hard anodized aluminum or bronze housing for under the waterline surface mounting. Single color or color changing versions available with variable brightness and a wide array of control options.

KEY FEATURES:
  • Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
  • Tough, scratch resistant, tempered glass lens with hard anodized aluminum or bronze housing — impervious to acetone, solvents and demanding marine environments
  • Transient surge and reverse polarity protection — dramatically prolongs unit life
  • Thermal throttling technology — enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • 3-Year Warranty

Control Options

Power Toggle Control

Toggle power source to advance to the next color or brightness level

Power Toggle Control

Quickly toggle power source to advance to the next color or brightness level

Shadow-NET Control

Full-feature control with your MFD

Shadow-NET Control

Dramatic, full-feature control through your multifunction Display (MFD) by adding the Shadow-NET control Module

Shadow-NET Modes

  • Unlimited shades of color and fading
  • Dimming
  • Music sync
  • Strobe rate
  • Multiple zones

Dramatically enhance lighting capabilities through your existing MFD

Additional Information

Weight 1.5 lbs
Dimensions 4.5 × 4.5 × 3.75 in
Housing

Aluminum, Bronze

Color

, , ,

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Includes

• Lighting unit
• 3’ (1mm) submersible-grade cable
• 3 mounting screws
• Standard 3 year warranty
